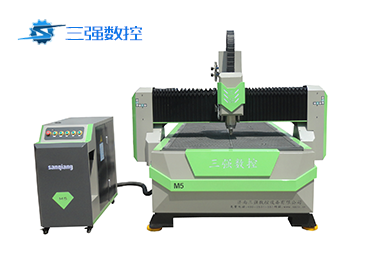

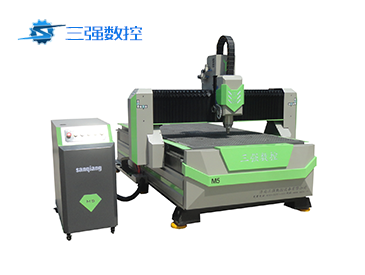

三强SQ-M5高光迷你机加工中心
产品分类：产品中心
性能特点
Characteristics：
◆10毫米壁厚200*200钢机构，整机3吨重，淬火处理后经五面钻加工，确保床身的刚性和精度。
◆整机采用进口高精密研磨齿条传动，提高机车的加工精度和稳定性。
◆标配4把换刀刀库，换刀准确，适用于多种工艺加工，可选配8把换刀。
◆9.0KW换刀主轴，3万转速，切面光洁。
◆机器配台湾850W交流伺服驱动电机，日本新宝减速机。
◆The weight of the machine which is 10 mm thick and made by 200*200 steel is 3Ton. It has 5 surfaces of drill processing after the tempering treatment, for making sure the machine’s rigidity and accuracy.
◆It improves the processing accuracy and stability because the whole machine is used high precise grinding rack gear.
◆The standard equipped is 4 cutters with precise cutter switching, and is suitable for multi craft processing. Besides, it’s optional to have 8 cutters switching.
◆The cutter switching axis is 9 KW and the turning speed is 30,000, the surface is cut is smoothy.
◆The machine has Taiwan 850W alternating current servo motor and Japanese SHIMPO reduction gear.
产品参数
Product Parameter ：
